Industrial Application
Oil Pump
Electric Fill Pump
FD/FA/FR Series
Oil Pump Electric Fill Pump FD Series FD-24 FD-24
Application
• Low viscosity oil
• Heavy fuel oil A
• Kerosene
• Diesel
• Light oil
Introduction examples

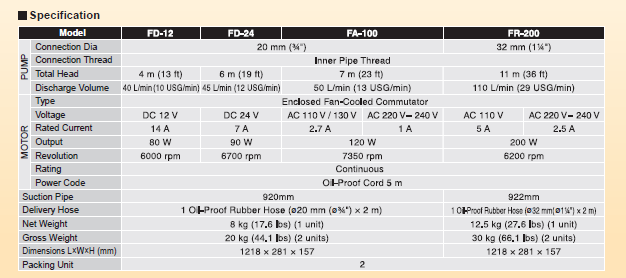

Product category |
|
Product name |
|
Pump_Connection Dia |
20 mm(3/4") |
Pump_Connection Thread |
Inner Pipe Thread |
Pump_Total Head |
6 m (19 ft) |
Pump_Delivery Volume |
45 L/min (12 USG/min) |
Motor_Type |
Enclosed Fan-Cooled Commutator |
Motor_Voltage |
DC 24 V |
Motor_Output |
890 W |
Motor_Revolution |
6700 rpm |
Motor_Rating |
Continuous |
Motor_Power cord |
Oil-Proof Cord 5 m |
Suction Pipe |
920 m |
Delivery Hose |
1 Oil-Proof Rubber Hose (φ20mm(φ 3/4 ")×2 m) |
Net Weight |
8 kg (17.6 lbs) (1 unit) |
Gross Weight |
20 kg (44.1 lbs) (2 units) |
Dimensions L×W×H (mm) |
1218 × 281 × 157 |
Packing Unit |
2 |
Performance curve and outline drawing
