"GEAR PUMP" GL Series for Low Viscosity Oil
• Safety by-pass function protects pump.
• For oil transfer

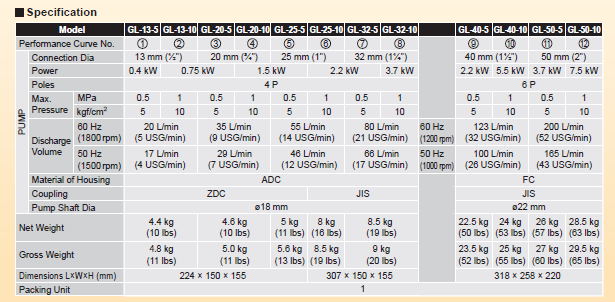

Product category | - |
---|---|
Product name | GL-32-10 |
Pump_Connection Dia | 32 mm (1 1/4 '') |
Pump_Power | 3.7 kW |
Pump_Poles | 4 P |
Pump_Pressure_Mpa | 1 |
Pump_Pressure_kgf/cm2 | 10 |
Pump_Delivery Volume_60 Hz (1200 rpm) | 80 L/min (21 USG/min) |
Pump_Delivery Volume_50 Hz (1000 rpm) | 66 L/min (17 USG/min) |
Pump_Material of Housing | ADC |
Pump_Coupling | JIS |
Pump_Pump Shaft Dia | φ 18mm |
Accessories | - |
Net weight | 8.5 kg (18.7 lbs) |
Gross weight | 9.0 kg (19.8 lbs) |
Product dimensions L x W x H | 307 x 150 x155 mm |
Packing dimensions L x W x H | - |
Packing Unit | 1 |
