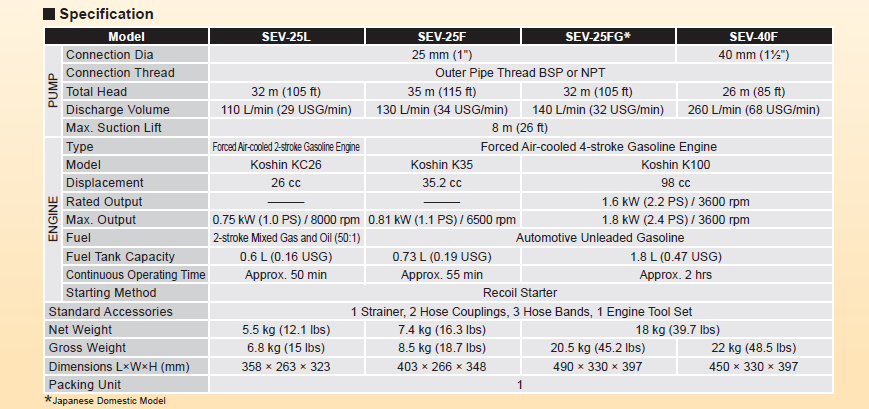

Product category | |
---|---|
Product name | SEV-25L |
Model name | SEV-25L-BAA-4 |
Pump_Connection dia_Suction | 25 mm (1 '') |
Pump_Connection dia_Discharge | 25 mm (1 '') |
Pump_Connection thread | |
Pump_Total head | 32 m (105 ft) |
Pump_Discharge volume | 110 L/min(6.6 m3/h) |
Pump_Max. suction head | 8 m (26 ft) |
Engine_Type | KC26 C5 |
Engine_Model | CLEAR 1.7 C5 |
Engine_Displacement | |
Engine_Rated output | |
Engine_Max. output | |
Engine_Fuel | Unleaded etrol + 2% two-stroke oil 2T * |
Engine_Fuel tank capacity | 0.6 L |
Engine_Engine oil | |
Engine_Engine oil capacity | |
Engine_Continuous operating time | |
Engine_Starting method | |
Applicable liquids_Consistency | Clean water or water with low levels of sediment |
Applicable liquids_Suspended solid percentage | |
Applicable liquids_Max. solids size | |
Applicable liquids_Temperature | 8 mm |
Accessories | |
Net weight | 5.5 kg |
Gross weight | 6.8 kg |
Product dimensions L x W x H | 336 x 237 x 313 |
Packing dimensions L x W x H | 358 × 263 × 323 |
1. Engine start failure.(Refer to instruction of engine)
2. Blocked impeller.(Disassemble & clean)
