• Silicon Carbide Mechanical Seal (SiC).
4 to 5 times more durable than standard Carbon Ceramic Mechanical Seal.
• Spheroidal graphite iron casting (FCD 450) for Impeller and Casing.
6.5 times more corrosion resistant than standard FC or Cast Iron .
• Impeller can be removed easily without special tool.
• Long bolt assembly for easy maintenance.

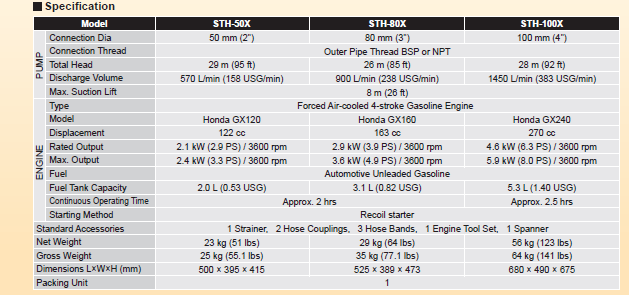

Product category | |
---|---|
Product name | STH-80X |
Model name | STH-80X-BAA-0 |
Pump_Connectiondia_Suction | 80 mm (3'') |
Pump_Connectiondia_Discharge | 80 mm (3'') |
Pump_Connection thread | BSP or NPT |
Pump_Total head | 26 m (85ft) |
Pump_Discharge volume | 900 L/min (238 USG/min) |
Pump_Max. suction head | 8 m (26ft) |
Engine_Type | Forced Air-cooled 4-stroke Gasoline Engine |
Engine_Model | HONDA GX160 |
Engine_Displacement | 163 cm3 |
Engine_Rated output | 2.9 kW (3.9 PS)/ 3600 min-1 |
Engine_Max. output | 3.6 kW (4.9 PS)/ 3600 min-1 |
Engine_Fuel | Automotive Unleaded Gasoline |
Engine_Fuel tank capacity | 3.1 L (0.82 USG) |
Engine_Engine oil | - |
Engine_Engine oil capacity | 0.58 L |
Engine_Continuous operating time | 2 hrs |
Engine_Starting method | Recoil starter |
Applicable liquids_Consistency | Sandy and muddy water |
Applicable liquids_Suspended solid percentage | 10% |
Applicable liquids_Max. solids size | 9 mm |
Applicable liquids_Temperature | 5-45 ℃ |
Accessories | 1 Strainer, 1 Spanner, 1 Engine tool sets |
Net weight | 29 kg (63.9 lb) |
Gross weight | |
Product dimensions L x W x H | |
Packing dimensions L x W x H |
1. Engine start failure.(Refer to instruction of engine)
2. Blocked impeller.(Disassemble & clean)
