Powered by Honda GX270 & GX390 with oil alart
・ The cleanout cover can be removed easily without removing hoses
・ Handles on the cleanout cover can be installed in vertical or horizontal position
・ Easy removal of knobs
・ New Impeller design with hexagon boss for easy installation and removal

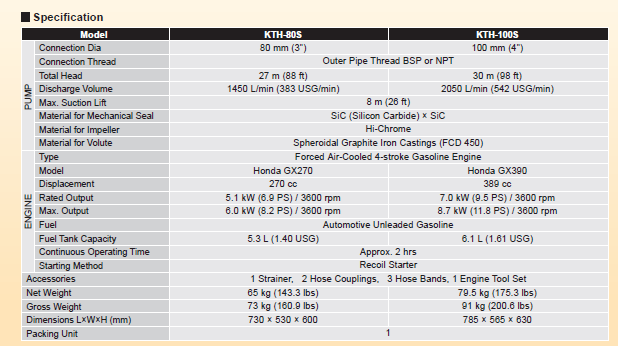

Product category | |
---|---|
Product name | |
Model name | KTH-80S |
Pump_Connectiondia_Suction | 80 mm (3'') |
Pump_Connectiondia_Discharge | 80 mm (3'') |
Pump_Connection thread | Parallel Pipe Thread or NPT |

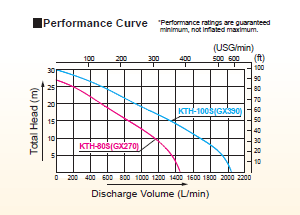

Pump_Total head | 27m 89ft |
Pump_Discharge volume | 1450 L/min (383 USG/min) |
Pump_Max. suction head | 8 m (26 ft) |
Engine_Type | Air Cooled 4 stroke OHV Gasoline Engine |
Engine_Model | Honda GX270 |
Engine_Displacement | 270 cm3 |
Engine_Rated output | 5.1 kW / 3600min-1 |
Engine_Max. output | 6.0 kW / 3600min-1 |
Engine_Fuel | Automotive Unleaded Gasoline |
Engine_Fuel tank capacity | 5.3 L (1.4 USG) |
Engine_Engine oil | SAE10W-30 API SJ or later, for general use. |
Engine_Engine oil capacity | 1.1L |
Engine_Continuous operating time | - |
Engine_Starting method | Recoil starter |
Applicable liquids_Consistency | Sandy and muddy water |
Applicable liquids_Suspended solid percentage | 25% |
Applicable liquids_Max. solids size | 27 mm |
Applicable liquids_Temperature | 5 - 45 ℃ |
Accessories | None or 1 Strainer, 2 Hose coupIings, 3 Hose bands, 1 Engine tool sets |
Net weight | 65.0 kg (143.3 lbs) |
Gross weight | 71.0 kg (156.5 lbs) |
Product dimensions L x W x H | |
Packing dimensions L x W x H | 730 × 530 × 600 mm |
1. Engine start failure.(Refer to instruction of engine)
2. Blocked impeller.(Disassemble & clean)
