Powered by Honda GX270 & GX390 with oil alart
・ The cleanout cover can be removed easily without removing hoses
・ Handles on the cleanout cover can be installed in vertical or horizontal position
・ Easy removal of knobs
・ New Impeller design with hexagon boss for easy installation and removal
Product category | |
---|---|
Product name | |

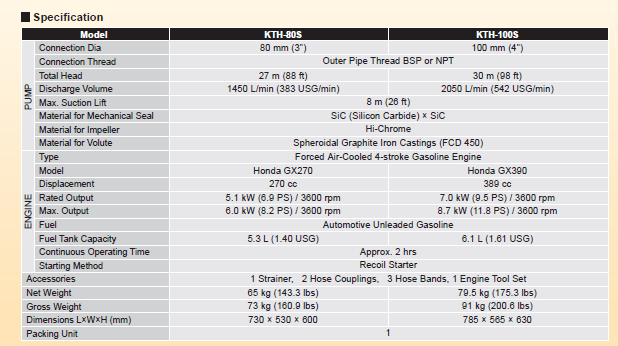

Model name | KTH-100S |
Pump_Connectiondia_Suction | 100 mm (4'') |
Pump_Connectiondia_Discharge | 100 mm (4'') |
Pump_Connection thread | Parallel Pipe Thread or NPT |

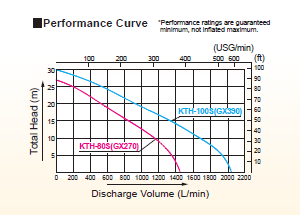

Pump_Total head | 30m 98ft |
Pump_Discharge volume | 2050 L/min (541 USG/min) |
Pump_Max. suction head | 8 m (26 ft) |
Engine_Type | Air Cooled 4 stroke OHV Gasoline Engine |
Engine_Model | Honda GX390 |
Engine_Displacement | 389 cm3 |
Engine_Rated output | 7.0 kW / 3600min-1 |
Engine_Max. output | 8.7 kW / 3600min-1 |
Engine_Fuel | Automotive Unleaded Gasoline |
Engine_Fuel tank capacity | 6.1 L (1.6 USG) |
Engine_Engine oil | SAE10W-30 API SJ or later, for general use. |
Engine_Engine oil capacity | 1.1L |
Engine_Continuous operating time | - |
Engine_Starting method | Recoil starter |
Applicable liquids_Consistency | Sandy and muddy water |
Applicable liquids_Suspended solid percentage | 25% |
Applicable liquids_Max. solids size | 27 mm |
Applicable liquids_Temperature | 5 - 45 ℃ |
Accessories | None or 1 Strainer, 2 Hose coupIings, 3 Hose bands, 1 Engine tool sets |
Net weight | 79.5 kg (175.2 lbs) |
Gross weight | 86.5 kg (190.6 lbs) |
Product dimensions L x W x H | |
Packing dimensions L x W x H | 785 × 565 × 630 mm |
1. Engine start failure.(Refer to instruction of engine)
2. Blocked impeller.(Disassemble & clean)
