• Superior material used.
・PET (Polyethylene Terephthalate) for pump casing,impeller and volute casing.
・EPDM and carbon ceramic for mechanical seal.
・SUS for all bolts and washers.
• Powered by strong and durable engine.

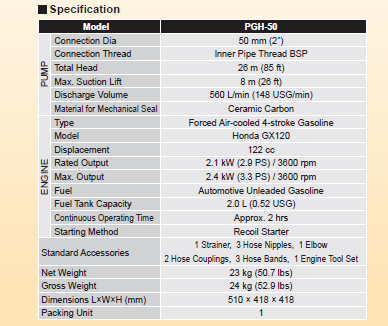

Product category | Engine Pump - Chemical & Sea Water Pump - Thermoplastic Pump PG Series |
---|---|
Product name | PGH-50 |
Pump_Connection dia_Suction | 50 mm (2'') |
Pump_Connection dia_Discharge | 50 mm (2'') |
Pump_Connection thread | BSP Outer Pipe Thread |
Pump_Total head | 26 m (85 ft) |
Pump_Discharge volume | 560 L/min (148 USG/min) |
Pump_Max. suction head | 8 m (26 ft) |
Engine_Type | Forced Air-cooled 4-stroke Gasoline Engine |
Engine_Model | HONDA GX120 |
Engine_Displacement | 118 cm3 122 cm3 |
Engine_Rated output | 2.1 kW (2.9 PS)/ 3600 min-1 |
Engine_Max. output | 2.6 2.4 kW (3.5 3.3 PS)/ 3600 min-1 |
Engine_Fuel | Automotive Unleaded Gasoline |
Engine_Fuel tank capacity | 2.5 L 2.0 L |
Engine_Engine oil | - |
Engine_Engine oil capacity | 0.56 L |
Engine_Continuous operating time | Approx. 2 hrs (full tank) |
Engine_Starting method | Recoil starter |
Applicable liquids_Consistency | Seawater |
Applicable liquids_Suspended solid percentage | - |
Applicable liquids_Max. solids size | - |
Applicable liquids_Temperature | 5-45 °C (41-113°F) |
Accessories | 2 Nipples, 1 Engine tool sets |
Net weight | 19.8 kg (43.7 lbs) |
Gross weight | |
Product dimensions L x W x H | |
Packing dimensions L x W x H |
1. Engine start failure.(Refer to instruction of engine)
2. Blocked impeller.(Disassemble & clean)
